Pipe & Drape Hardware Guide: Uprights, Bases, Crossbars & Connectors

Every freestanding pipe and drape backdrop is built from the same handful of hardware components — vertical uprights, weighted base plates, telescoping crossbars, and the connectors and weights that hold it all together. Whether you're building a rental fleet from scratch, expanding an existing system, or replacing a worn part, this guide covers the full pipe and drape hardware side end to end: what each component does, how the pieces lock together tool-free, and how to match the parts so your setup stands straight and strikes fast.

Expo Warehouse is the exclusive authorized WENTEX distributor for the USA and Canada, and everything below is the working knowledge our crew uses to spec hardware every day.

The core pipe and drape hardware components

A complete pipe and drape hardware system comes down to four load-bearing parts plus two supporting ones:

• Uprights — the vertical poles that set your height.
• Base plates — the weighted steel feet that hold each upright straight.
• Crossbars (drape supports) — the telescoping horizontals that span between uprights and carry the drape.
• Drapes — the flame-retardant fabric panels that slide onto the crossbars.
• Base weights — slide-on ballast for extra stability on tall or high-traffic setups.
• Connectors & clamps — parts that branch, angle, and rig the frame beyond a simple straight wall.

Learn these six and any pipe and drape setup — from a 3-foot table skirt to a 16-foot stage wall — makes sense. Here's each in detail.

Uprights & extensions

Uprights are the vertical poles that determine your backdrop height. They come in two styles:

• Telescopic uprights adjust on the fly. WENTEX 2-, 3-, and 4-way telescopic uprights cover everything from 4 ft up to 16 ft, so one pole handles many jobs — a 3 ft table skirt today, a 12 ft room divider tomorrow.
• Fixed uprights lock to a single height for a repeatable, rattle-free setup when you always run the same wall.

Each upright locks at height with a compression brake — a built-in tightening handle, not a fragile friction cam — for a secure hold that repeats show after show. The standard trade-show booth wall is 8 ft; stage backdrops and tall dividers run 10–16 ft; table and riser skirting is 3–4 ft.

Base plates & floor supports

Every upright stands in a base plate — a powder-coated steel foot that keeps the pole straight and the wall stable. The taller the setup, the heavier the base you need. As a rule of thumb:

A pin on the base locates the upright, so assembly stays tool-free.

Base weights — don't skip stabilizing

The most common pipe and drape failure is a tipped backdrop. For tall walls, busy aisles, doorways, or anywhere people brush past, add slide-on rubber base weights (available in 20 and 30 lb) on top of your base plates. They drop on in seconds, won't scratch floors, and stop a bump or a gust from taking your wall down.

Crossbars & drape supports

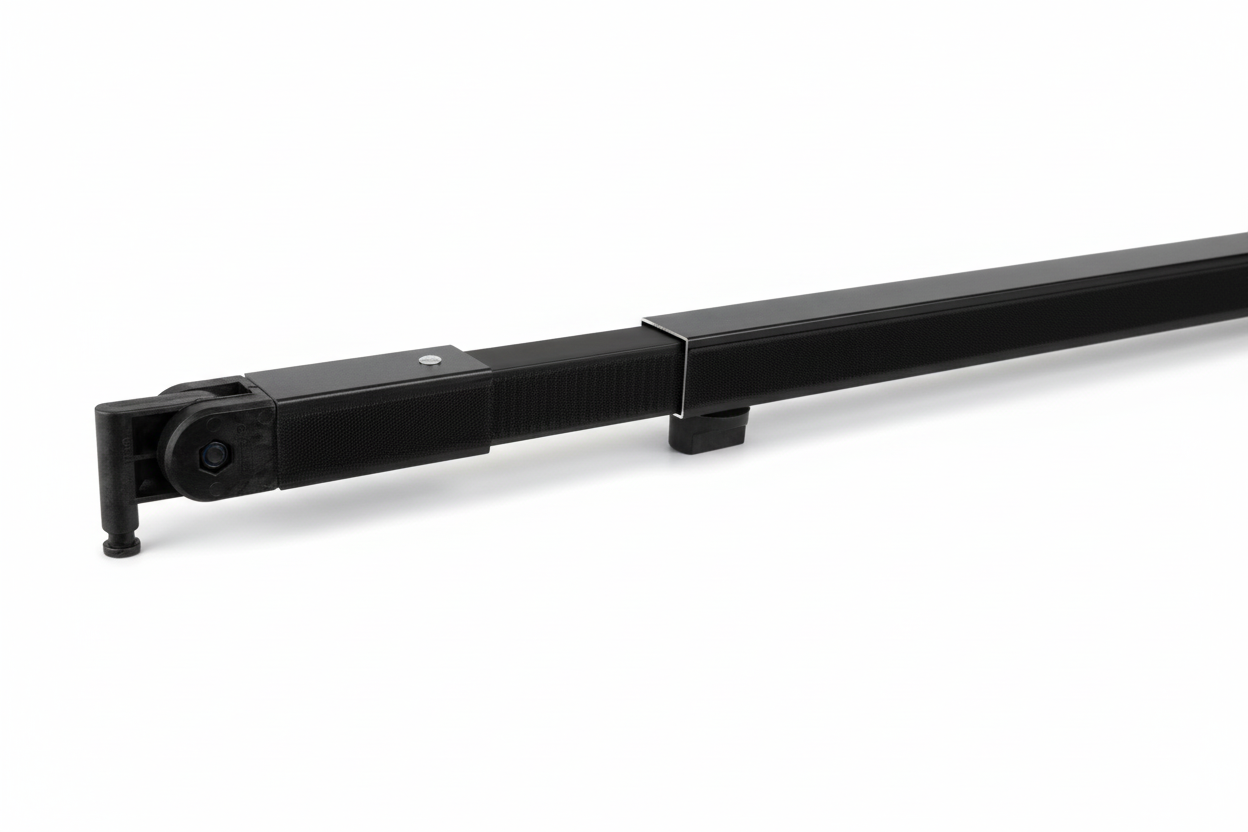

Crossbars — also called drape supports — are the telescoping horizontal bars that span between two uprights and carry the drape. Because they telescope, one set covers a range of booth and backdrop widths. WENTEX telescopic drape supports come in 3–4 ft, 4–6 ft, and 6–10 ft adjustable spans.

You need one crossbar per section, and one more upright than you have sections, because the middle uprights are shared:

Number of uprights = number of crossbar sections + 1.

So a 20-ft-wide backdrop built from two 10-ft sections needs two crossbars and three uprights (with three bases).

Connectors, clamps & replacement parts

Beyond a simple straight wall, connectors and clamps let you branch, angle, and rig the frame — 4-way connectors to build corners and grids, flex adapters for angled runs, and scaff clamps to hang from truss. Keep a few replacement parts on hand too — pins, knobs, and swivel pins keep a rental fleet show-ready when a part walks off after a load-out.

How pipe and drape hardware locks together

Assembly is deliberately tool-free. A base plate sits on the floor; a pin locates the upright into it; the upright is locked at height with its compression brake and tightening handle. Telescoping crossbars drop between adjacent uprights, the drapes slide onto the crossbars, and the wall is up. To extend a run, add another upright-and-crossbar section in line. Nothing attaches to the building, so the whole system sets up and strikes in minutes and travels from show to show.

Building à la carte vs buying a complete kit

You can buy hardware piece by piece or as a bundled system:

• Build à la carte when you need a specific size, are expanding an existing system, or want the most flexible — and often most economical — way to outfit a rental fleet. Mix and match the hardware with the drape panels you need.
• Buy a complete pipe and drape kit when you want a known-good, travel-ready setup — uprights, bases, crossbars, and drape sized to work together, with no guesswork. WENTEX XL Kits ship on a steel rolling trolley sized for fast load-in and storage.

Not sure how many parts you need? Our Pipe & Drape Calculator turns a backdrop length and height into a parts list. For step-by-step sizing, see the Sizing & Buying Guide, or start with the Complete Guide to Pipe & Drape.

Why buy genuine WENTEX hardware from Expo Warehouse

As the authorized WENTEX distributor for the US and Canada, Expo Warehouse stocks genuine, professional-grade hardware — not the lightweight imports sold elsewhere. WENTEX uprights use a compression-brake lock (not a friction cam) for repeatable, secure setups, and our drape fabrics are independently certified to NFPA 701 (USA) and CAN/ULC-S109 (Canada) — the flame-retardant standards most venues require. Everything ships from our warehouse in Evans, GA, backed by expert support to help you spec the right parts the first time.

Frequently asked questions

What hardware do I need for pipe and drape?

Four core parts: uprights (set the height), base plates (hold the uprights straight), telescoping crossbars or drape supports (span between uprights), and drape panels. Add rubber base weights for tall or high-traffic setups, and connectors or clamps to build corners, grids, or truss rigs.

How many uprights and crossbars do I need?

One crossbar per section, and one more upright than you have sections, because the middle uprights are shared: number of uprights = number of sections + 1. A 20-ft backdrop of two 10-ft sections needs two crossbars and three uprights.

What size base plate do I need?

Match the base to the height: 14×12 or 18×18 for setups up to 8 ft, 18×18 for 10–12 ft, and 24×24 for 14–16 ft. Add rubber base weights for extra stability on tall walls, doorways, or busy aisles.

How do WENTEX uprights lock?

With a compression brake and a built-in tightening handle — not a fragile friction cam. It gives a secure, rattle-free hold that repeats setup after setup.

Can I mix pipe and drape hardware with a kit?

Yes. The system is modular, so you can extend a kit by adding upright-and-crossbar sections in line, or build entirely à la carte from components. Send us your dimensions and we'll spec exactly what you need.
